產品明細

TW3710P

被動單頻 GNSS 天線

    產品簡述
    ♦ 涵蓋所有全球導航衛星系統星座
    ♦ 極佳的軸比：典型值為 2.5 dB
    ♦ 靜電放電電路保護 15 kV
    ♦ 符合 IP69K、RoHS 和 REACH 標準

    <<產品型錄>>
      詢價

      產品詳細介紹Product Introduction

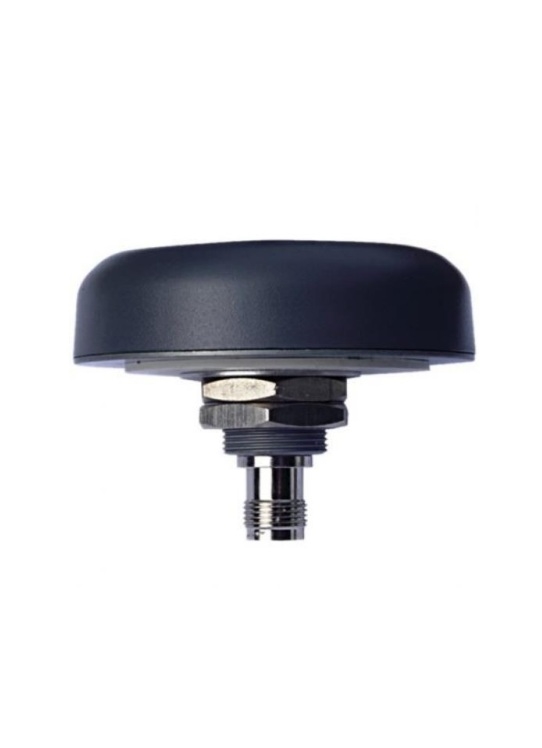

      TW3710P Passive Single Band GNSS Antenna


      The TW3710P employs Calian's patented Accutenna® technology covering the BeiDou B1, Galileo E1, GPS-L1, GLONASS-G1 and SBAS (WAAS, QZSS, EGNOS & MSAS) frequency band (1559 to 1606 MHz). It provides truly circular response over its entire bandwidth thereby producing superior multipath signal rejection. It is especially suitable for high accuracy applications.

      TW3710P antennas features a dual-feed wideband patch element. This configuration provides excellent axial ratio that is constant across the full frequency band along with a superb phase linear response and tight phase centre variation providing performance normally associated with much higher priced antennas.

      The antennas are housed in a through-hole mount, weatherproof enclosure for permanent installations. L Bracket or Pipe Mount adapters (part numbers 23-0040-0, 23-0065-0 respectively) are available for non-rooftop installation. A 100 mm ground plane is recommended for optimal performance.



      Applications:
      • High-accuracy & mission-critical global positioning
      • Precision agriculture, mining, and construction
      • Law enforcement and public safety
      • Avionics
      • ​​​Fleet management and asset tracking



      Antenna:- Measured with a 100 mm ground plane
