產品明細

TW2743

單頻段 GNSS 天線（附銥星）

    產品簡述
    ♦ 客製化高增益、5 dBic 雙饋貼片
    ♦ 極佳的軸比，全頻寬範圍內損耗小於 2 dB
    ♦ 15 kV ESD 電路保護
    ♦ IP67防護等級外殼
    ♦ 堅固的工業級外殼
    ♦ 磁鐵或螺絲安裝

    <<產品型錄>>
      詢價

      產品詳細介紹Product Introduction

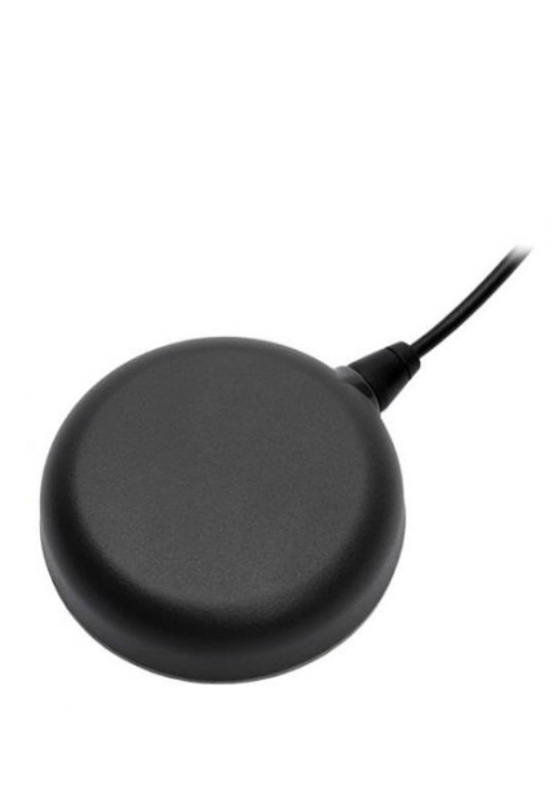

      TW2743 Single Band GNSS Antenna with Iridium


      The TW2743 employs Calian's patented Accutenna® technology in a magnet mount, right hand circularly polarized antenna for the reception of all of the GNSS constellations (GPS-L1/GLONASS-G1/ Galileo E1/ BeiDou B1) plus Iridum: 1559 to 1626.5 MHz frequency band. It is specially designed to maximize the performance of Iridium® Voice and Data Modems plus the upper GNSS band (1559 – 1606MHz).

      The TW2743 is switchable between the passive Iridium and the active GNSS antenna by changing the input voltage to the antenna. When the input voltage is less the 5.5 VDC, the antenna will engage the GNSS antenna. To invoke the passive Iridium antenna, an input voltage above 6 VDC is required.

      The TW2743 features a high performance dual-feed patch element that provides great axial ratio (4.5 dB max, < 1.5 dB @ zenith) over the entire Iridium® + upper GNSS frequency band, thus signals at the band edges remain truly circular, unlike the response of single-feed antennas.

      The TW2743 is housed in a compact, industrialgrade weatherproof, magnet mount enclosure, with threaded base holes for screw down attachment.

      • Iridium® Voice and Data Applications+ GNSS
      • Sea & Land Container Tracking
      • Law enforcement and public safety
      • Fleet management and asset tracking
      • Marine & Avionics Systems
      • Law enforcement and public safety



      Antenna:- Measured with a 100 mm ground plane
