產品明細

TW5384-6

雙智慧型 GNSS 天線行動基座精密航向 SDK - TP5384SDK-6H

    產品簡述
    ♦  用於透過地面網路進行 PointPerfect Flex PPP-RTK 校正的 MQTT 用戶端（精度低於 6 公分）
    ♦ 用於 RTK 基地台/流動站配置的 NTRIP 用戶端
    ♦ 相容於本地或商業網路RTK服務，例如Swift Navigation Skylark Cx精密定位或Point One Navigation Polaris RTK。
    ♦ 使用 2 個TW5384-6 智慧型 GNSS 天線，透過直接 RTCM 路徑，實現基地台/流動站對的行動基地台精確航向定位
    ♦ NMEA 監測、衛星可見性和訊號強度、GNSS 狀態監測以及具有可視化狀態熱圖的日誌記錄工具
    ♦ 狀態通知，用於精確定位天線、校正和網路連線方面的問題
    ♦ ROS2® 驅動程式

    <<產品型錄>>
      詢價

      產品詳細介紹Product Introduction

      TW5384-6 Dual Smart GNSS Antenna Moving Base Precise Heading SDK - TP5384SDK-6H


      Calian’s High-Precision Smart GNSS antennas integrate advanced receivers connecting Position, Navigation, and Timing resources to host systems over robust digital interfaces.

      Calian SDK’s are a plug-and-play evaluation platform for our Smart Antennas with tools such as:
      TruPrecision Software, short term complimentary augmentation subscription services and USB bridge devices, as required, for plug and play operation.

      The Calian TruPrecision SDK is a Windows application which provides an autonomous connection to stream corrections  and decryption keys to the TW5384-6 Smart GNSS Antenna via a USP serial bridge, which also provides a Virtual COM Port to allow customers to connect their existing applications to the Calian Smart GNSS Antenna “corrected” position data output.  The position data may be either NMEA or UBX formatted messages.

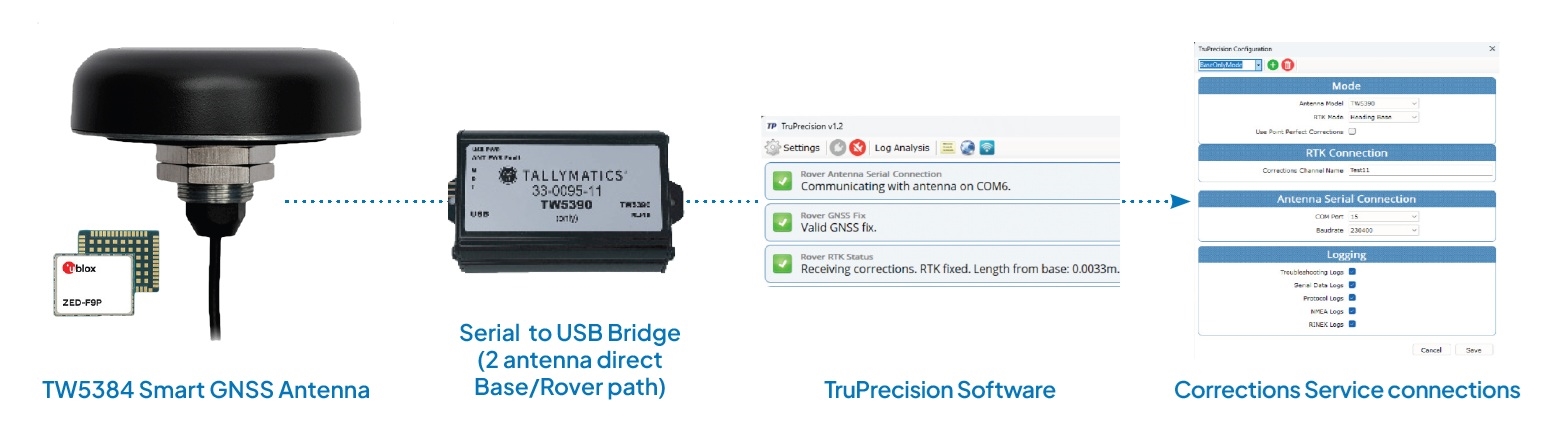

      TP5386SDK-6  includes:

      • 2  x  Calian TW5384 High-Precision Smart GNSS Antenna with PPP-RTK and Precise Heading | u-blox ZED-F9P
      • 1  x  23-0067-0: 10 cm aluminum ground-plane
      • Calian 33-0095-24 Dual Port Base-Rover direct connect USB Serial Bridge (see ordering information)
      • Calian TruPrecision Application for correction streaming
      • Complimentary corrections services trials (see feature list on page one of this brochure)

      Features:
