產品明細

HCS885XF-PTONE L1/L5L1/L5

智慧型 GNSS 螺旋 SDK

    產品簡述
    ♦ 用於 RTK 基地台/流動站配置的 NTRIP 用戶端（公分級精度）
    ♦ 相容於 Point One Navigation 的 Polaris Virtual RTK 和 True RTK 選項
    ♦ 提供 NMEA 監控、衛星可見性和訊號強度、GNSS 狀態監控和日誌記錄工具，以及可視化狀態熱圖和訊息路由功能，用於透過網際網路在基地台/流動站對之間共享 RTCM
    ♦ 狀態控制台可精確定位天線、連接和網路校正方面的問題
    ♦ 另提供 ROS2® 驅動程式（點擊第 3 頁上的標誌）
    ♦ 贈送 Point One Navigation 提供的 Polaris RTK 校正一年免費許可

    <<產品型錄>>
      詢價

      產品詳細介紹Product Introduction

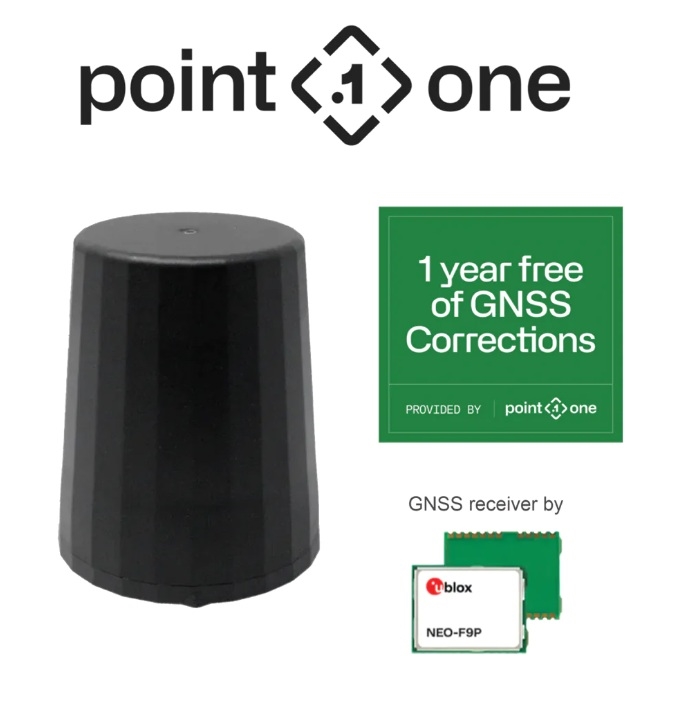

      HCS885XF-PTONE L1/L5 Smart GNSS Helical SDK


      Calian’s High-Precision Smart GNSS antennas integrate advanced receivers connecting Position, Navigation, and Timing resources to host systems over robust digital interfaces.

      Calian SDK’s are a plug-and-play evaluation platform for our Smart Antennas with tools such as:
      TruPrecision Software, complimentary licenses to Polaris RTK corrections from Point One Navigation, and USB bridge devices, as required, for plug and play operation.

      The TruPrecison SDK application is a Windows application to provision your new HCS885XF Smart Antenna with a connection and license to Polaris RTK corrections from Point One Navigation. Once provisioned, the antenna continuously generates high precision “corrected” position data output as NMEA formatted messages. The included USB-to-Serial Bridge provides a virtual COM port to allow customers to connect their onboard navigation and mapping applications to receive these messages from the Calian Smart GNSS Antenna in real-time.

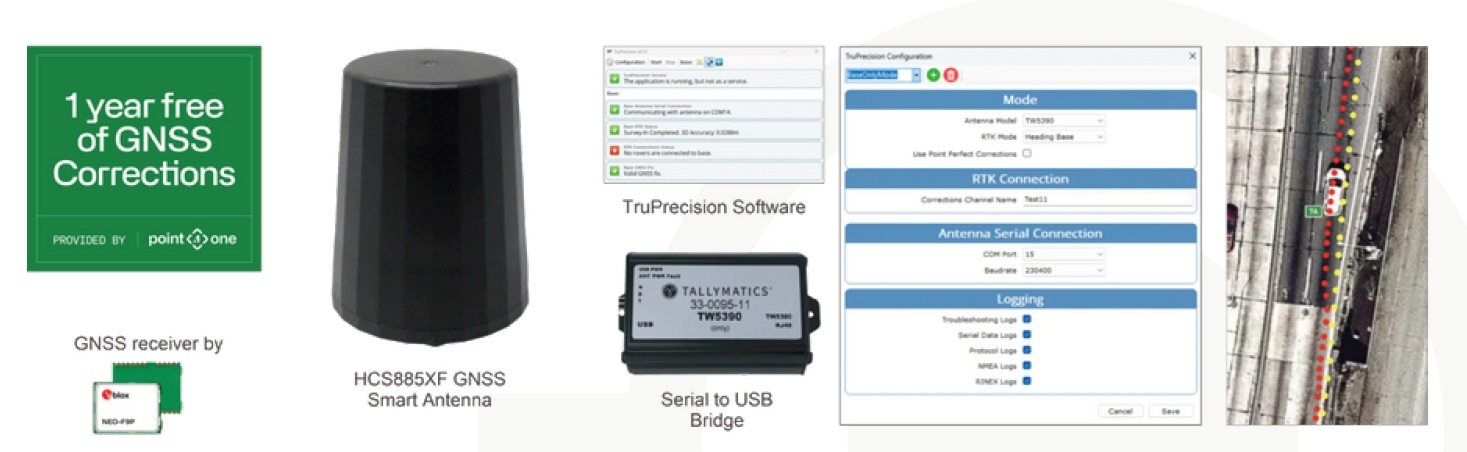

      HCS885XFSDK-PTONE includes:

      • Calian HCS885XF Smart GNSS Precise Heading helical antenna with CMOS interface
      • Calian JST to USB cable (see ordering information)
      • Calian TruPrecision Application for correction streaming
      • 1-year complimentary license to Polaris RTK corrections from Point One Navigation(see feature list on page one)

      Features:
