產品明細

HCS885XF-SWNAV L1/L5

智慧型 GNSS 螺旋 SDK

    產品簡述

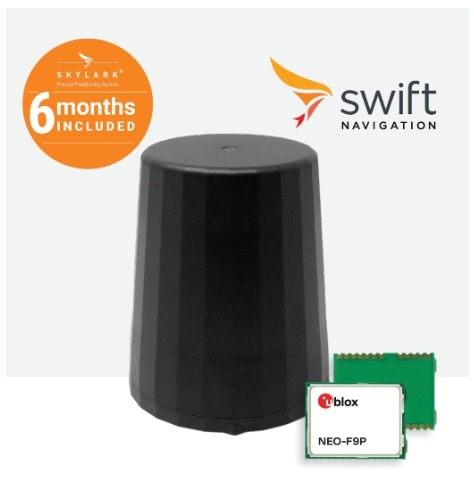

    ♦ 1 個 Tallysman 33-HCS885XF-49 智慧型 GNSS 精確航向螺旋天線，帶 CMOS 接口
    ♦ Calian TruPrecision 軟體開發與驗證應用
    ♦ Swift Navigation Skylark Cx 精準定位服務 6 個月試用訂閱
    ♦ 1根JST轉USB連接線

    <<產品型錄>>
      詢價

      產品詳細介紹Product Introduction

      HCS885XF-SWNAV L1/L5 Smart GNSS Helical SDK


      Calian’s High-Precision Smart GNSS antennas integrate advanced receivers connecting Position, Navigation, and Timing resources to host systems over robust digital interfaces.

      Calian SDK’s are a plug-and-play evaluation platform for our Smart Antennas with tools such as: TruPrecision Software, complimentary augmentation subscription services and USB bridge devices, as required, for plug and play operation.

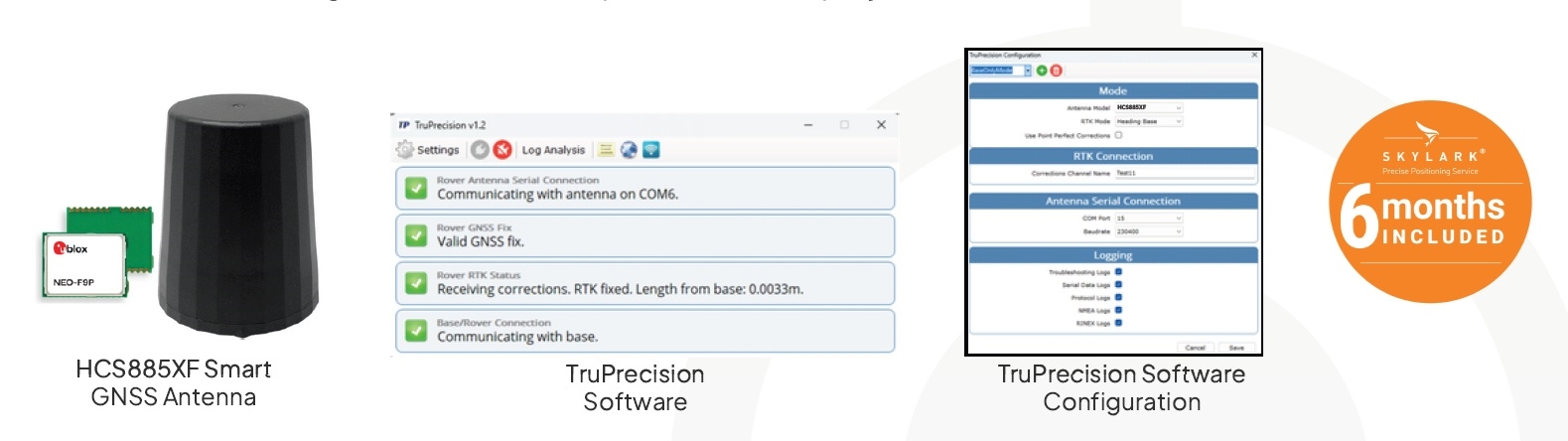

      The Calian TruPrecision SDK is a Windows application which provides an autonomous connection to stream Skylark corrections to the HCS885XF Smart Antenna via serial to a USB Bridge cable (CMOS version). It also provides a Virtual COM Port to allow customers to connect their existing applications to the HCS885XF Smart Antenna position data output. Position data is output as NMEA Formatted messages. ROS2® Drivers are available for integration with ROS2 open framework projects.


      HCS885XFSDK includes:

      • Calian HCS885XF Smart GNSS Precise Heading helical antenna with CMOS interface
      • Calian JST to USB cable (see ordering information)
      • Calian TruPrecision Application for correction streaming
      • Complimentary corrections services trials (see feature list on page one)

      Antenna
      Architecture Multi-band (L1/L5), Helical
      Axial Ratio≤ 0.5 dB at Zenith
      PCV±3 mm
      Frequencies GPS/QZSS: L1 C/A, L5; GLO: L1OF; GAL: E1-B/C, E5a; BDS: B1l & B2a
      SBAS L1 C/AWAAS, EGNOS, MSAS L1Sb, GAGAN
      Channels184-channel u-blox F9 engine
      Anti-jammingActive Continuous Wave detection
      Interface
      Pwr, Gnd
      HCS885XF-29TX1/RX1: RS-232; Timepulse: CMOS*
      HCS885XF-49TX1/RX1: CMOS; Timepulse: CMOS*
      HCS885XF-79TX1/RX1, TX2/RX2: CMOS
      Connector6 Position JST Receptacle Connector, 1.25mm pitch
      * Timepulse is a Factory Configurable Custom request
      Serial Protocol
      Output NMEA 0183, UBX Binary, RTCM v3.3, SPARTN v2.0
      Baud Rate Configurable
      Update Rate (PVT)7 Hz (4); 8 Hz (GPS+GAL+BDS); 18 Hz (GPS+GAL);
      20 Hz (GPS+GLO); 11 Hz (GPS+BDS); 25 Hz (GPS)
      Mechanical
      Dimensions 44.55 mm dia. x 52.75 mm H
      Weight 38 g
      Mounting Method3x M2.5 screws
      Electrica
      Voltages5 VDC
      Current110 mA (nominal)
      Environmental
      Operating Temperature-40ºC to +85ºC
      Storage Temperature-40ºC to +85ºC
      WeatherproofIP69K
      ShockVertical axis 50G,other axis 30G
      3 axis sweep – 15 min
      Vibration10-200 Hz log sweep 3G
      Sensitivity (4 Constellations)
      Tracking & Nav-167 dBm
      Reacquisition-160 dBm
      Hot starts-157 dBm
      Cold starts-148 dBm
      Acquisition
      Cold start 27 sec
      Aided start3 sec
      Reacquisition 3 sec
      Posistion and Velocity Accuracy (4 Constellations)
      Horizontal PVT/SBAS/RTK (CEP) 1.5m/ 1.0m/ 0.01+1ppm
      Horizontal PPP-RTK (CEP) <0.1m SPARTN;
      Vertical PVT/SBAS/RTK (R50) 2.0m/ 1.5m/ 0.01m+1ppm
      Vertical PPP-RTK) (R50) <0.20m SPARTN;
      Typical Convergence<12s RTK; <65s SPARTN;
      Velocity accuracy 0.05m/s
      Heading
      Dynamic Heading Accuracy0.3 degrees (50% @ 30 m/S)
      Precise Heading Accuracy0.4 degrees ( > 1M baseline)
      Timing
      Timing Accuracy30 ns RMS
