TW5390C

智慧型 GNSS 天線（含 CLAS SDK）- TP5390CSDK

    產品簡述
    ♦ Calian 33-5390C-09-10-05-PC0 雙頻精密智慧天線/接收器，附 L 波段接收器 (RS-422)
    ♦ Calian USB 串列橋接器 (33-0095-11)
    ♦ Calian TruPrecision 應用，透過 IP 傳輸 PointPerfect Flex PPP-RTK 串流媒體。
    ♦     試用訂閱：
    • PointPerfect Flex PPP-RTK（60 天免費試用）
    • Swift Navigation Skyark Cx（6 個月免費試用）
    • Point One Navigation Polaris RTK（1 年免費服務）

    <<產品型錄>>
      詢價

      產品詳細介紹Product Introduction

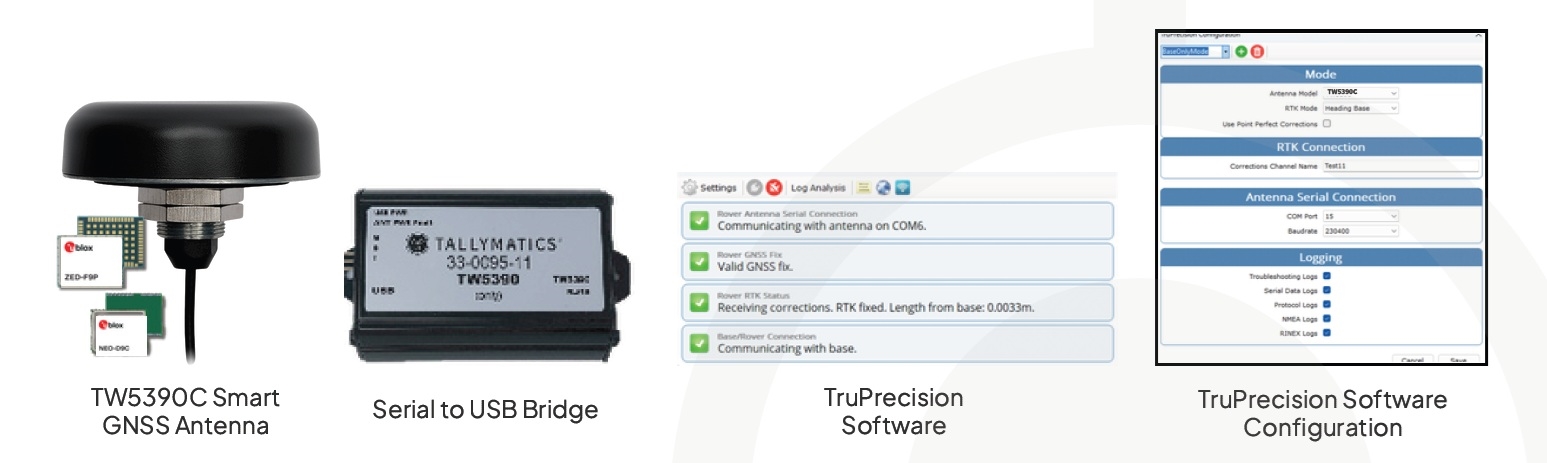

      TW5390C Smart GNSS Antenna with CLAS SDK - TP5390CSDK


      Calian’s High-Precision Smart GNSS antennas integrate advanced receivers connecting Position, Navigation, and Timing resources to host systems over digital interfaces.

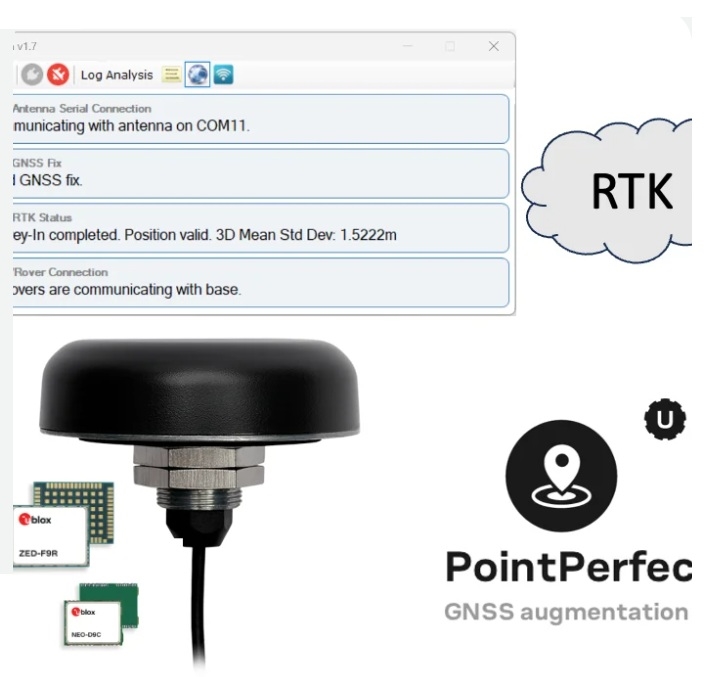

      Calian SDK’s are a plug-and-play evaluation platform for our Smart Antennas with tools such as: TruPrecision Software, short term complimentary augmentation subscription services and USB bridge devices, as required, for plug and play operation.

      Features:

      Antenna
      ArchitectureMulti-band (L1/L2), Dual Feed
      Axial RatioL1: < 1 dB typical.
      FrequenciesGPS L1C/A L2C, GLO L1OF L2OF, GAL E1B/C E5b, BDS B1l B2l, QZSS L1C/A L2C
      SBAS L1 C/AWAAS, EGNOS, MSAS, GAGAN
      Channels184-channel u-blox F9 engine
      Anti-jammingActive CW detection
      Corrections Receiver L6 CLAS PPP-RTK (SSR)
      Interface
      Pwr, Gnd
      33-5390C-19-yy-zzData: USB 2.0 Type A Male
      33-5390C-29-yy-zzData, Timepulse: RS-232
      Serial Protocol
      OutputNMEA 0183, UBX Binary, RTCM v3.3, SPARTN v2.0
      Baud RateConfigurable
      Update Rate9 Hz (4); 10 Hz (GPS+GAL+BDS); 20 Hz (GPS+GAL);
      20 Hz (GPS+GLO); 16 Hz (GP+BDS); 25 Hz (GPS)
      Mechanical
      Dimensions68.2 mm dia. x 22 mm H
      Weight185 g
      Mounting MethodIndustrial grade fixed Mount
      Cable Length5, 15, 25m with RJ45 termination (-29)
      Electrical
      Voltages5 VDC
      Current0.6 Watts (nominal operating)
      Measured @ 5VDC supply
      Environmental
      Operating Temperature-40℃ to +85℃
      Storage Temperature-40℃ to +85℃
      WeatherproofIP67
      ShockVertical axis 50G,other axis 30G 3 axis
      sweep – 15 min
      Vibration10-200 Hz log sweep 3G
      Sensitivity
      Tracking & Nav-160 dBm
      Reacquisition-160 dBm
      Hot starts-158 dBm
      Cold starts-147 dBm
      Acquisition
      Cold start 25 sec
      Aided start3 sec
      Reacquisition 2 sec
      Horizontal Posistion Accuracy (4 Constellations)
      Standard PVT 1.5m CEP
      Standard SBAS1.0m CEP
      Corrected RTK0.01m + 1ppm CEP
      Augmented SPARTN (PPP-RTK) <0.06m CEP
      SPARTN Convergence<45 sec*
      Heading
      Dynamic Heading Accuracy0.3º (30 m/sec)
      Timing
      Timing Accuracy30 ns RMS
