TW3440 Single Band GNSS Antenna

The TW3440/TW3442 employs Calian's patented Accutenna® technology, covering the GPS-L1, GLONASSG1, and SBAS (WAAS, EGNOS & MSAS) frequency bands (1575 to 1606 MHz). They are especially designed for timing, mobile, precision, safety and security applications. They provide truly circular response over the antenna’s entire bandwidth thereby producing superior multipath signal rejection.

The TW3440 each feature a highly circular dual-feed wideband patch element, with a three stage low-noise amplifier. This configuration provides excellent axial ratio that is constant across the full frequency band. A tight pre-filter on the TW3442 protects against saturation by high-level sub-harmonics and L-Band signals.

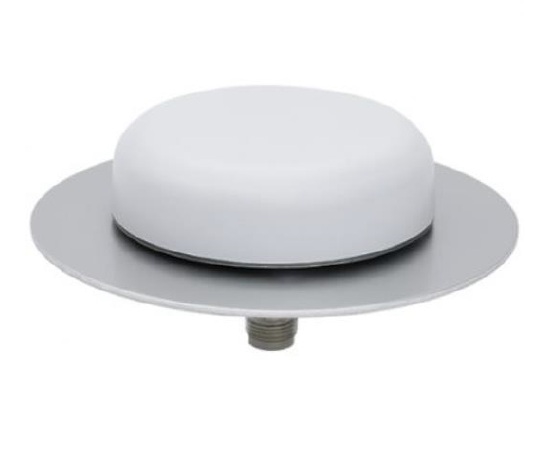

The TW3440 is housed in a permanent-mount industrialgrade weatherproof enclosure, and is available with a wide variety of connectors.

The antenna is available with either a flat or a conical radome. Conical radomes are recommended for permanent locations to ward off birds and shed ice/snow.


• Great axial ratio: 1 dB typ.
• High-gain LNA: 40 dB typ.
• Low noise LNA: 1 dB typ.
• Low current: 20 mA typ.
• Wide voltage input range: 2.5 to 16 VDC
• IP69K weatherproof housing

Applications:

• GPS / GLONASS Gong cable Mobile/fixed Installations
• High-accuracy & mission-critical global positioning
• Precision agriculture, mining, and construction
• Avionics
• Law enforcement and public safety

Antenna:- Measured with a 100 mm ground plane
