TW5387

智慧型 GNSS L1/L5 天線（附 IMU SDK）- TP5387SDK

    產品簡述
    ♦ Calian Tallysman TW5387 L1/L5 高精度 GNSS 智慧天線，採用 Accutenna® 技術
    ♦ NMEA 監測、衛星可見性和訊號強度、GNSS 狀態監測、慣性測量單元感測器融合狀態和日誌記錄工具，以及視覺化狀態熱圖
    ♦ 狀態控制台用於精確定位天線、校正和網路連接之間的問題
    ♦     免費試用：
    • u-Blox PointPerfect Flex PPP-RTK 服務（60 天免費試用）
    • Swift Navigation Skylark Cx 精準定位服務（6 個月免費試用）
    • Point One Navigation Polaris RTK（1 年免費服務）

    <<產品型錄>>
      詢價

      產品詳細介紹Product Introduction

      TW5387 Smart GNSS L1/L5 Antenna with IMU SDK - TP5387SDK


      Calian’s High-Precision Smart GNSS antennas integrate advanced receivers connecting Position, Navigation, and Timing resources to host systems over digital interfaces.

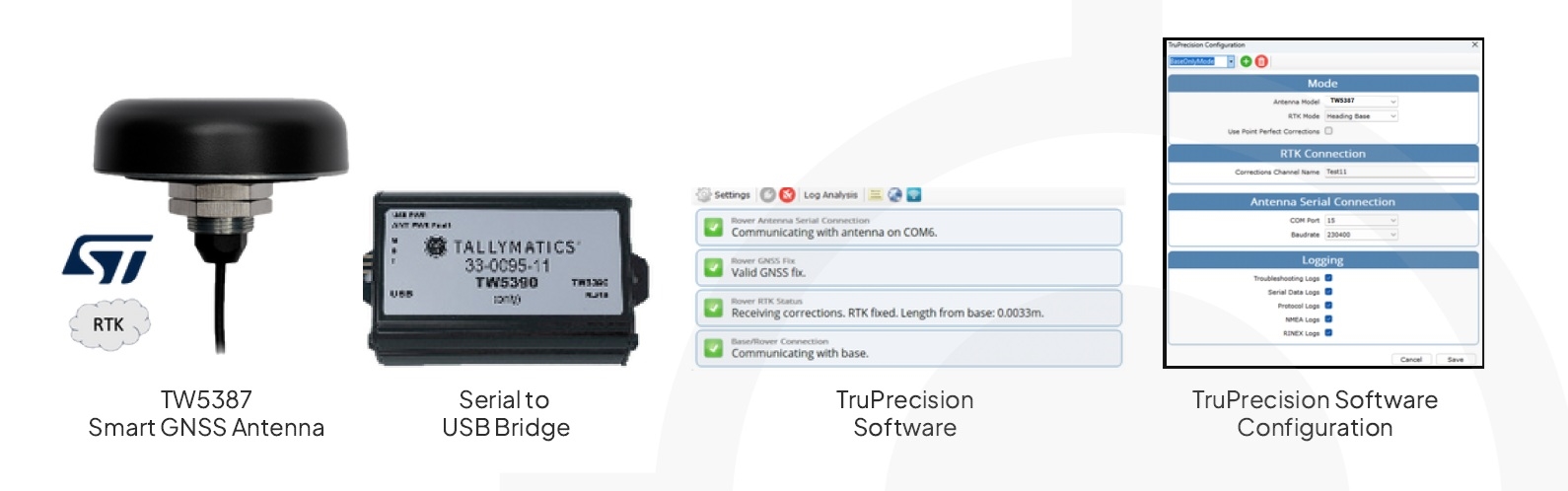

      Calian SDK’s are a plug-and-play evaluation platform for our Smart Antennas with tools such as: TruPrecision Software, short term complimentary augmentation subscription services and USB bridge devices, as required, for plug and play operation.

      Features:

      Antenna
      ArchitectureMulti-band (L1/L5), Dual Feed
      Axial RatioL1: < 1 dB typical.
      FrequenciesGPS L1C/A L5, GAL E1 E5a, BDS B1l B2a,
      QZSS L1C/A L5
      Interface
      Pwr, Gnd
      33-5387-07-yy-zzData, Timepulse: RS-422 levels
      33-5387-27-yy-zzData: RS-232; Timepulse: RS-422
      Serial Protocol
      OutputNMEA 0183, UBX Binary, RTCM v3.3,
      Baud RateConfigurable
      Update Rate10 Hz
      Mechanical
      Dimensionsc66.5 mm dia. x 21 mm H
      Weight 135 g
      Mounting MethodIndustrial grade fixed Mount
      Cable Length 5, 15, 25m with RJ45 termination
      Electrical
      Voltages 5 V to 36 VDC
      Current 0.5 Watts (nominal operating)
      Measured @ 5VDC supply
      Environmental
      Operating Temperature-40℃ to +85℃
      Storage Temperature-40℃ to +85℃
      WeatherproofIP69K
      ShockVertical axis 50G,other axis 30G 3 axis
      sweep – 15 min
      Vibration10-200 Hz log sweep 3G
      Sensitivity
      Tracking & Nav-160 dBm
      Reacquisition-153 dBm
      Cold starts-145 dBm
      Acquisition Time To First Fix
      Cold start36 sec
      Aided start10 sec
      Reacquisition3 sec
      Horizontal Posistion Accuracy (4 Constellations)
      Standard PVT1.0 m CEP
      Corrected RTK 0.01m + 1ppm CEP
      RTK Convergence10 sec*
      Timing
      Timing Accuracy 100 ns RMS
