產品明細

TW3600

銥星®天線

    產品簡述
    ♦ 客製化高增益 4.25 dBic 雙饋貼片
    ♦ 極佳的軸比，全頻寬範圍內增益達 3 dB。
    ♦ 15 kV ESD 電路保護
    ♦ IP69K 防水防塵外殼
    ♦ 堅固的工業級外殼
    ♦ 表面安裝、支架安裝或桅杆安裝

    <<產品型錄>>
      詢價

      產品詳細介紹Product Introduction

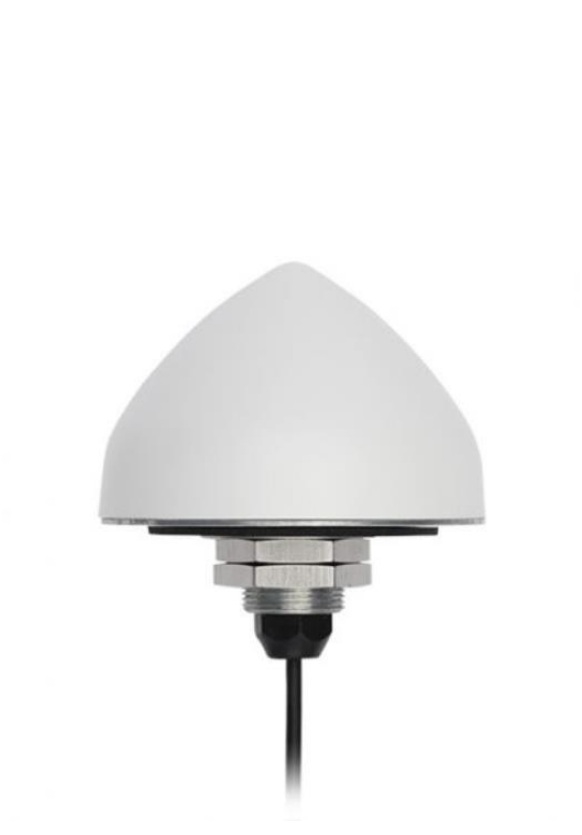

      TW3600 Iridium® Antenna


      The TW3600 employs Calian's patented Accutenna® technology in a permanent-mount, passive right hand circularly polarised antenna for the 1616 to 1626.5 MHz frequency band, specially designed to maximise the performance of Iridium® voice and data modems.

      The TW3600 features a high performance dualfeed patch element that provides great axial ratio (3 dB max.) over the entire Iridium® frequency band, thus signals at the band edges remain truly circular, unlike the response of single-feed antennas.

      The TW3600 is housed in a permanent-mount industrial-grade weatherproof enclosure and comes with a TNC Jack (female) connector, allowing for the Iridium® modem to be mounted out of the elements and reach, and still providing excellent Iridium® signal coverage.

      Coverage:

      Applications:

      • Iridium® Voice and Data Applications
      • Sea & Land Container Tracking
      • Law enforcement and public safety
      • Fleet management and asset tracking
      • Marine & Avionics Systems
      • Law enforcement and public safety

      Antenna: - Measured with a 100 mm ground plane
