產品明細

TW2600A

銥星®天線

    產品簡述
    ♦ 客製化高增益 4.25 dBic 雙饋貼片
    ♦ 極佳的軸比，全頻寬範圍內損耗小於 3 dB。
    ♦ 15 kV ESD 電路保護
    ♦ IP67防護等級外殼
    ♦ 堅固的工業級外殼
    ♦ 磁鐵、黏合劑或螺絲安裝

    <<產品型錄>>
      詢價

      產品詳細介紹Product Introduction

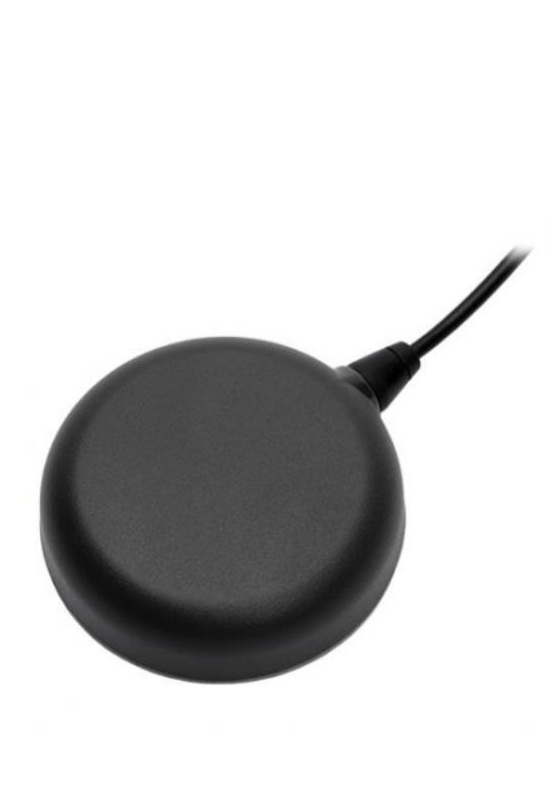

      TW2600A Iridium Antenna


      The TW2600A employs Calian's patented Accutenna® technology in a magnet mount, passive right hand circularly polarised antenna for the 1616 to 1626.5 MHz frequency band, certified and specially designed to maximise the performance of Iridium® Voice and Data Modems.

      The TW2600A features a high performance dual-feed patch element that provides great axial ratio (3 dB max) over the entire Iridium® frequency band, thus signals at the band edges remain truly circular, unlike the response of single-feed antennas.

      The TW2600A is housed in a compact, industrialgrade weatherproof, magnet mount enclosure, with threaded base holes for screw down attach.

      Coverage:

      Applications:

      • Iridium® Voice and Data Applications
      • Sea & Land Container Tracking
      • Law enforcement and public safety
      • Fleet management and asset tracking
      • Marine & Avionics Systems
      • Law enforcement and public safety

      Antenna: - Measured with a 100 mm ground plane
