產品明細

VSS6037L

VeroStar™ 表面黏著式全 GNSS 精密天線 + L 波段

    產品簡述
    ♦ 相位中心偏差小(典型值±2mm)
    ♦ 從天頂到地平線的軸比低
    ♦ 從天頂到地平線的滾動降低
    ♦     低仰角L波段校正接收性能優異
    ♦ 低仰角下G/T值高
    ♦ 3.0至16V直流電壓下性能穩定
    ♦ 低電流(50mA)
    ♦ 低噪聲係數(1.8分貝)
    ♦ 輕巧緊湊，堅固耐用
    ♦ 符合IP69K, RECH和RoHS標準

    <<產品型錄>>
      詢價

      產品詳細介紹Product Introduction

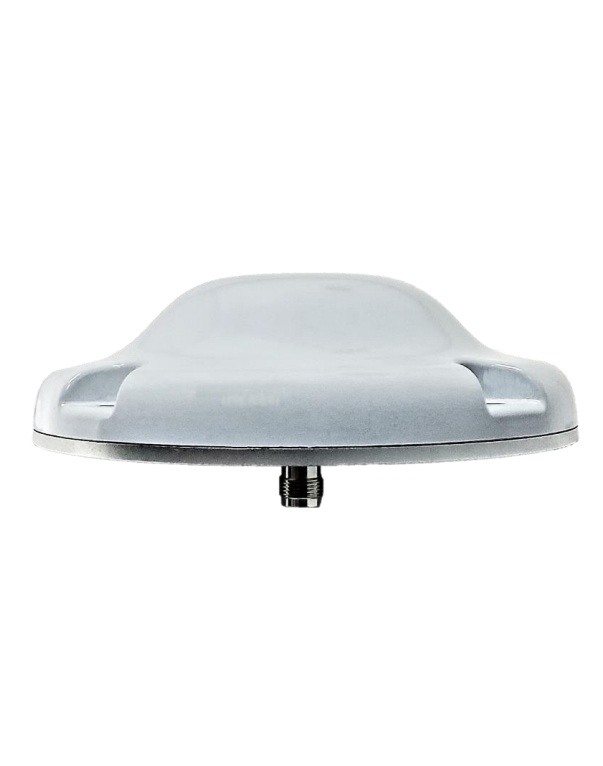

      VSS6037L VeroStar™ Surface-Mount Full GNSS Precision Antenna + L-band


      The patent-pending VSS6037L antenna employs Calian's unique VeroStar™ technology, providing high gain over the full GNSS spectrum: GPS/QZSSL1/L2/L5, QZSS-L6, GLONASS-G1/G2/G3, Galileo-E1/E5a/E5b/E6, BeiDou-B1/B2b/B2a/B3, and NavIC-L5, including the satellite-based augmentation system (SBAS) available in the region of operation [WAAS (North America), EGNOS (Europe), MSAS (Japan), or GAGAN (India)], as well as L-Band correction services.

      The light and compact surface-mount VeroStar™ VSS6037L is designed for high-accuracy positioning while being robust and reliable.

      With an exceptionally low roll-off from zenith to the horizon, the VeroStar™ antenna provides the best-in-class tracking of GNSS and L-Band correction signals from low elevation angles. In addition, the optimized axial ratio at all elevation angles results in excellent multipath rejection, thus enabling accurate and precise code and phase tracking of GNSS and L-Band correction signals.

      A wide-band spherical antenna element enables the VeroStar™ to deliver a ±2 mm phase centre variation (PCV), making it ideal for high-precision applications, such as autonomous vehicle navigation (land, sea, and air), machine control, and precision agriculture.

      The VeroStar™ antenna features a robust pre-filter and high-IP3 LNA architecture, minimizing de-sensing from high-level out-of-band signals, including 700 MHz LTE, while still providing a noise figure of only 1.8 dB.

      The surface-mount antenna has passed a battery of tests (water pressure, altitude, salt fog, shock, drop, and vibration) to ensure it can survive the rigours of day-to-day field use.

      The unique features of the VeroStar™ antenna guarantee it can deliver high signal-to-noise ratio (SNR) and highly accurate and precise code and phase tracking of GNSS signals from all elevation angles in the most challenging environments.

      • High-precision GNSS systems
      • All surface-mount precision applications like:
      ∘ Autonomous vehicle navigation (land, sea, air)
      ∘ Marine navigation
      ∘ RTK/PPP systems
      ∘ Precision agriculture

      Antenna:
