VSE6328L

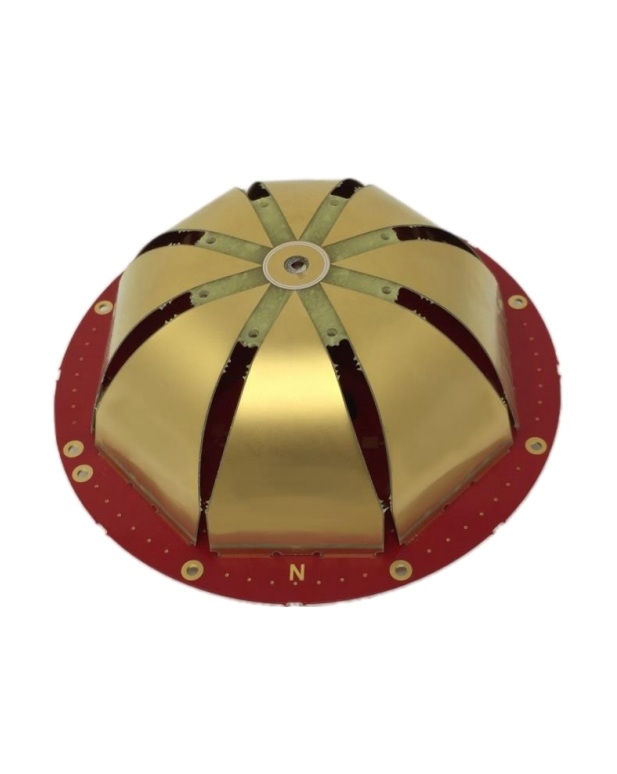

嵌入式 VeroStar™ 三頻 GNSS 精密天線 + L 波段

產品簡述

♦ 相位中心偏差小(典型值±2mm)
♦ 從天頂到地平線的軸比低
♦ 從天頂到地平線的滾動降低
♦ 低仰角L波段校正接收性能優異
♦ 低仰角下G/T值高
♦ 3.0至16V直流電壓下性能穩定
♦ 低電流(50mA)
♦ 低噪聲係數(1.8分貝)
♦ 輕巧緊湊，堅固難用
♦ 符合RECH和RoHS標準

<<產品型錄>>

詢價

產品詳細介紹Product Introduction

VSE6328L Embedded VeroStar™ Triple-band GNSS Precision Antenna + L-band

The patent-pending VSE6328L antenna employs Tallysman’s unique VeroStar™ technology, providing high gain over the full GNSS spectrum: GPS/QZSS-L1/L2/L5, GLONASS-G1/G2/G3, Galileo-E1/E5a/E5b, BeiDou-B1/B2/B2a, and NavIC-L5, including the satellite-based augmentation system (SBAS) available in the region of operation [WAAS (North America), EGNOS (Europe), MSAS (Japan), or GAGAN (India)], as well as L-band correction services.

The light and compact embedded VeroStar™ VSE6328L is designed for high-accuracy positioning while being robust and reliable.

With an exceptionally low roll-off from zenith to the horizon, the VeroStar™ antenna provides the best-in-class tracking of GNSS and L-Band correction signals from low elevation angles. In addition, the optimized axial ratio at all elevation angles results in excellent multipath rejection, thus enabling accurate and precise code and phase tracking of GNSS and L-Band correction signals.

A wide-Band spherical antenna element enables the VeroStar™ to deliver a ±2 mm phase centre variation (PCV), making it ideal for high-precision applications, such as autonomous vehicle navigation (land, sea, and air), smart survey devices, and maritime positioning.

The VeroStar™ antenna features a robust pre-filter and high-IP3 LNA architecture, minimizing de-sensing from high-level out-of-band signals, including 700 MHz LTE, while still providing a noise figure of only 1.8 dB.

The embedded VeroStar™ antenna has passed shock and vibration tests to ensure it can survive the rigours of day-to-day field use.

The unique features of the VeroStar™ antenna guarantee it can deliver high signal-to-noise ratio (SNR) and highly accurate and precise code and phase tracking of GNSS signals from all elevation angles in the most challenging environments.

Coverage:

Coverage	Mount	Amplifier Gain	Connector Options
GPS/QZSS-L1, GPS/QZSS-L2, GPS/QZSS-L5, GLONASS-G1, GLONASS-G2, Galileo-E1, Galileo-E5a, Galileo-E5b, Galileo-E6, BeiDou-B1, BeiDou-B2, BeiDou-B2a, BeiDou-B2b, NavIC-L5, L-band correction services	Direct Screw	28 dB	MCX

Applications:

• High-precision GNSS systems
• All embedded precision applications, such as:
• Autonomous vehicle navigation (land, sea, air)
• Deformation monitoring stations
• Land survey rover
• Marine navigation
• RTK/PPP systems
• Reference network

Antenna:

Technology	GNSS triple-band crossed dipoles
		Gain dBic typ. at Zenith	Axial Ratio dB at Zenith
GNSS
GPS / QZSS	L1	4.0	< 1.0
	L2	4.5	< 1.0
	L5	4.0	< 1.0
GLONASS	G1	4.0	< 1.0
	G2	4.5	< 1.0
	G3	4.5	< 1.0
Galileo	E1	4.0	< 1.0
	E5A	4.0	< 1.0
	E5B	4.5	< 1.0
	E6	-	-
BeiDou	B1	4.0	< 1.0
	B2b	4.5	< 1.0
	B2a	4.0	< 1.0
	B3	-	-
IRNSS / NavIC	L5	4.0	< 1.0
QZSS	L6	-	-
L-Band Services (1525 MHz - 1559 MHZ)		4.0	< 1.0
Satellite Communications Iridiu
Iridium		-	-
Globalstar		-	-
Other
Axial Ratio at 10°	5.0 dB max.	Efficiency	> 70%
PC Variation	± 2 mm typ. (no azi.)	-	-

Low Noise Amplifier (LNA): - Measured at 3V and 25°C

Frequency Bandwith		Out of Band Rejection
Lower Band	1160 - 1255 MHz	≥ 80 dB @ ≤ 500 MH z ≥ 60 dB @ ≤ 900 MHz ≥ 55 dB @ ≤ 1120 MHz ≥ 14 dB @ ≥ 1290 MHz ≥ 41 dB @ ≥ 1310 MHz ≥ 58 dB @ ≥ 1350 MHz ≥ 65 dB @ ≥ 1390 MHz
L-Band Corr.	1539 - 1559 MHz	≥ 70 dB @ ≤ 1450 MHz ≥ 52 dB @ ≤ 1480 MHz ≥ 35 dB @ ≤ 1500 MHz ≥ 60 dB @ ≥ 1650 MHz ≥ 74 dB @ ≥ 1700 MHz
Upper Band	1559 - 1606 MHz
