產品明細

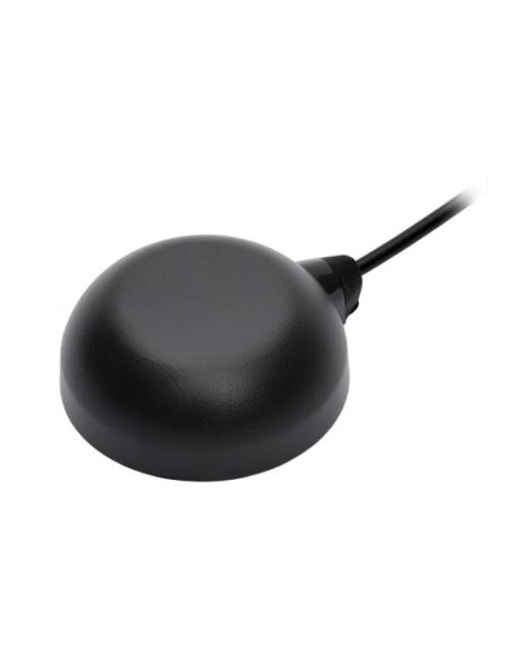

TW8889

雙頻GNSS天線

    產品簡述
    ♦ 超低雜訊前置放大器，2.5 dB
    ♦ 軸比：<2 dB（典型值）
    ♦ 緊密相位中心變化
    ♦ LNA增益最小26 dB。
    ♦ 低電流：典型值 12 mA。
    ♦ 靜電放電電路保護：15千伏

    <<產品型錄>>
      詢價

      產品詳細介紹Product Introduction

      TW8889 Dual Band GNSS Antenna

      The TW8889 employs Tallysman’s unique Accutenna® technology, covering GPS/QZSS L1/L2, GLONASS G1/G2/G3, Galileo E1/E5b, BeiDou B1/B2b, as well as SBAS (WAAS/EGNOS/GAGAN/MSAS).

      The TW8889 features a precision tuned, circular dualfeed, stacked patch element. The signals from the two orthogonal feeds are combined in a hybrid combiner, amplified in a wide-Band LNA, then band-split for narrow filtering in each band and further amplified prior to recombination at the output.

      The TW8889 offers excellent axial ratio and a tightly grouped phase centre variation.

      The TW8889 has a pre-filter which increases the antenna’s immunity to high-amplitude interfering signals, such as LTE and other cellular signals. A 100 mm diamter ground plane is recommended for optimal antenna performance.

      Coverage:

      • Autonomous unmanned aerial vehicles (UAVs)
      • Precision GPS position
      • Dual-frequency RTK receivers
      • Mission Critical GPS Timing
      • Safety & security
      • Network timing & synchronization


      Antenna: - Measured with a 100 mm ground plane
