產品明細

HC871

雙頻螺旋天線

    產品簡述
    ♦ 超低雜訊前置放大器：典型值 2.0 dB。
    ♦ 軸比：天頂處≤0.5 dB
    ♦ 低雜訊放大器增益：典型值 28 dB。
    ♦ 低電流：典型值 15 mA。
    ♦ 靜電放電電路保護：15 kV
    ♦ 在 2.5 至 16 VDC 電壓範圍內性能保持不變
    ♦ 符合 IP69K、REACH 和 RoHS 標準

    <<產品型錄>>
      詢價

      產品詳細介紹Product Introduction

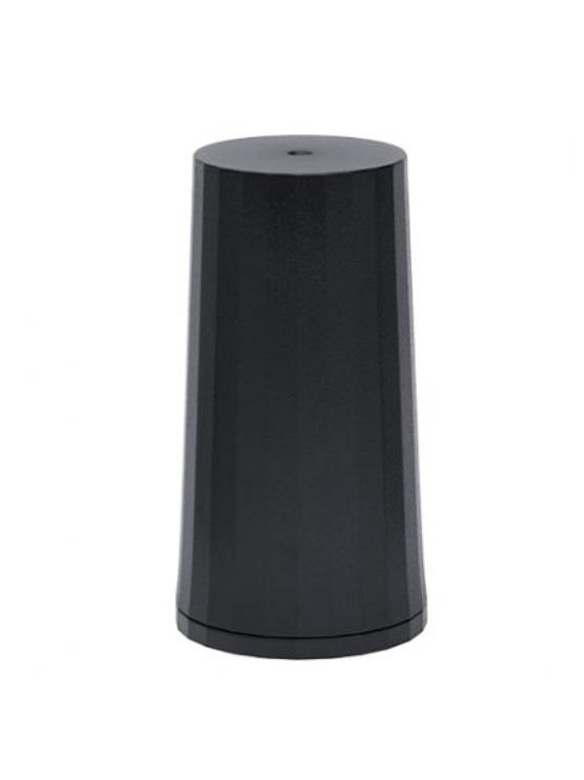

      HC871 Dual-Band Helical Antenna

      The patented HC871 helical antenna is designed and crafted for precision positioning, covering the GPS/QZSS-L1/L2, GLONASS-G1/G2, Galileo-E1, and BeiDou-B1 frequency bands, including the satellite-based augmentation system (SBAS) available in the region of operation [WAAS (North America), EGNOS (Europe), MSAS (Japan), or GAGAN (India)].

      Weighing only 24 g, the light and compact HC871 features a precisiontuned helix element that provides excellent axial ratios and operates without the requirement of a ground plane, making it ideal for a variety of applications, including uncrewed aerial vehicles (UAVs).

      The HC871 features an industry-leading low current, low-noise amplifier (LNA) that includes an integrated low-loss pre-filter to prevent harmonic interference from high-amplitude signals, such as 700 MHz band LTE and other nearby in-Band cellular signals.

      All Tallysman housed helical antenna elements are protected by a robust military-grade IP67-compliant plastic enclosure. The enclosure’s base provides two threaded inserts for secure attachment, as well as a rubber O-ring around the outer edge to seal the antenna base and its integrated male SMA connector.

      Calian's helical family has passed a rigorous 30-hour vibration test procedure, consisting of five cycles of 2-hour tests per axis (x, y, z):

       • Cycle 1: 1.05 Grms;
       • Cycle 2: 1.20 Grms;
       • Cycle 3: 1.35 Grms;
       • Cycle 4: 3.67 Grms;
       • Cycle 5: 3.67 Grms.

      • Autonomous uncrewed aerial vehicles (UAVs)
      • Precision GNSS positioning
      • Precision land survey positioning
      • Mission-critical GNSS timing
      • Network timing and synchronization
      • Sea and land container tracking
      • Fleet management and asset tracking
      • Marine and avionics systems
      • Law enforcement and public safety
