產品明細

TW4022

單頻段 GNSS 天線（預濾波）

    產品簡述
    ♦ 頻寬提升 40%，佔用空間更小
    ♦ 軸比：1 dB（典型值）
    ♦ 高抑制比 SAW 濾波器
    ♦ 高增益：典型值 26 dB。
    ♦ 寬電壓輸入範圍：2.5 至 16 VDC
    ♦ IP68防護等級外殼

    <<產品型錄>>
      詢價

      產品詳細介紹Product Introduction

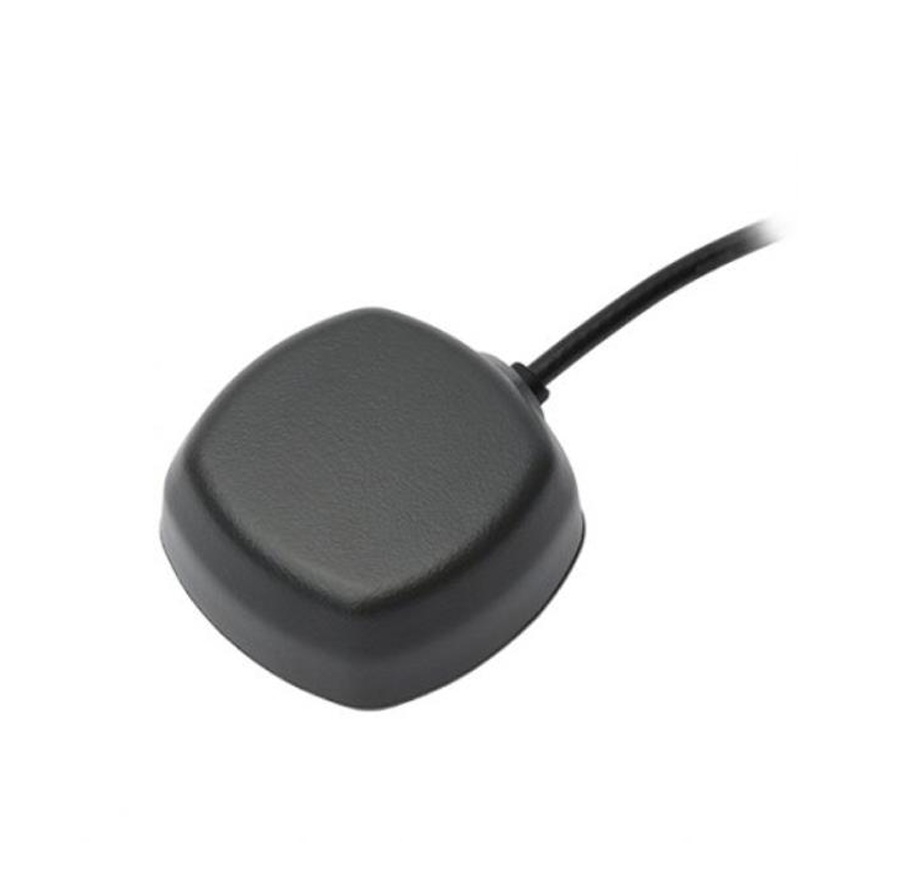

      TW4022 Single Band GNSS Antenna (Pre-filtered)

      The TW4022 is a commercial grade wideband GNSS antenna covering the GPS-L1, frequency band. It features a small patch element with 40% wider bandwidth than typical GPS-L1 antennas.

      The TW4022 features a high performance custom tuned ceramic patch element, 15 kV ESD circuit protection, a highgain two-stage low-noise amplifier (LNA) with a mid-section high-rejection SAW filter. It covers the GPS-L1 and SBAS (WAAS/EGNOS/MSAS) frequency band (1572.5 to 1578 MHz), and it offers great circular polarized signal reception.

      The TW4022 includes a pre-filter designed to mitigate strong intermodulated or near frequency signals.

      Even with the wider bandwidth, the TW4022 antenna is among the smallest high performance antenna available.

      It is housed in a compact IP68 magnetic mount enclosure. The antenna can be ordered without the magnet. In such cases, the magnet is replaced with a plastic plug to provide a smooth under surface, with the option of ordering it with or without 1.1 mm thick doublesided VHB tape on the bottom.

      Coverage:

      CoverageMountAmplifier GainConnector Options
      GPS/QZSS-L1Adhesive, Magnet26 dBMany Options, Please Inquire


      Applications:

      • Cost Sensitive Positioning
      • Fleet management and asset tracking
      • Covert surveillance


      Antenna      :

      TechnologySingle-feed RHCP ceramic patch
       Gain
      dBic typ. at Zenith      		Axial Ratio
      dB at Zenith
      GNSS
        GPS / QZSSL14.5≤ 1
      L2--
      L5--
        GLONASSG1--
       G2--
       G3--
        GalileoE1--
       E5A--
       E5B--
       E6--
        BeiDouB1--
       B2b--
       B2a--
       B3--
        IRNSS / NavICL5--
        QZSSL6--
        L-Band Services (1525 MHz - 1559 MHz)--
      Satellite Communications
        Iridium--
        Globalstar--
      Other
        Axial Ratio at 10°-Efficiency-
        PC Variation---

      Low Noise Apmlifier(LNA)       - Measured at 3V and 25°C
      Frequency BandwithOut of Band Rejection
      1575.42 MHz ± 10 MHz> 70 dB @ < 1500 MHz
      > 65 dB @ < 1550 MHz
      > 60 dB @ > 1640 MHz
