TW2706

嵌入式單頻GNSS天線

    產品簡述
    ♦ 極佳的軸比：典型值 1，最大值 3 dB
    ♦ 低噪音LNA：≤1 dB（典型值）
    ♦ 高抑制比 SAW 濾波器
    ♦ 低雜訊放大器增益：典型值 28 dB。
    ♦ 低電流：典型值 18 mA。
    ♦ 寬電壓輸入範圍：2.5 至 16 VDC

    <<產品型錄>>
      詢價

      產品詳細介紹Product Introduction

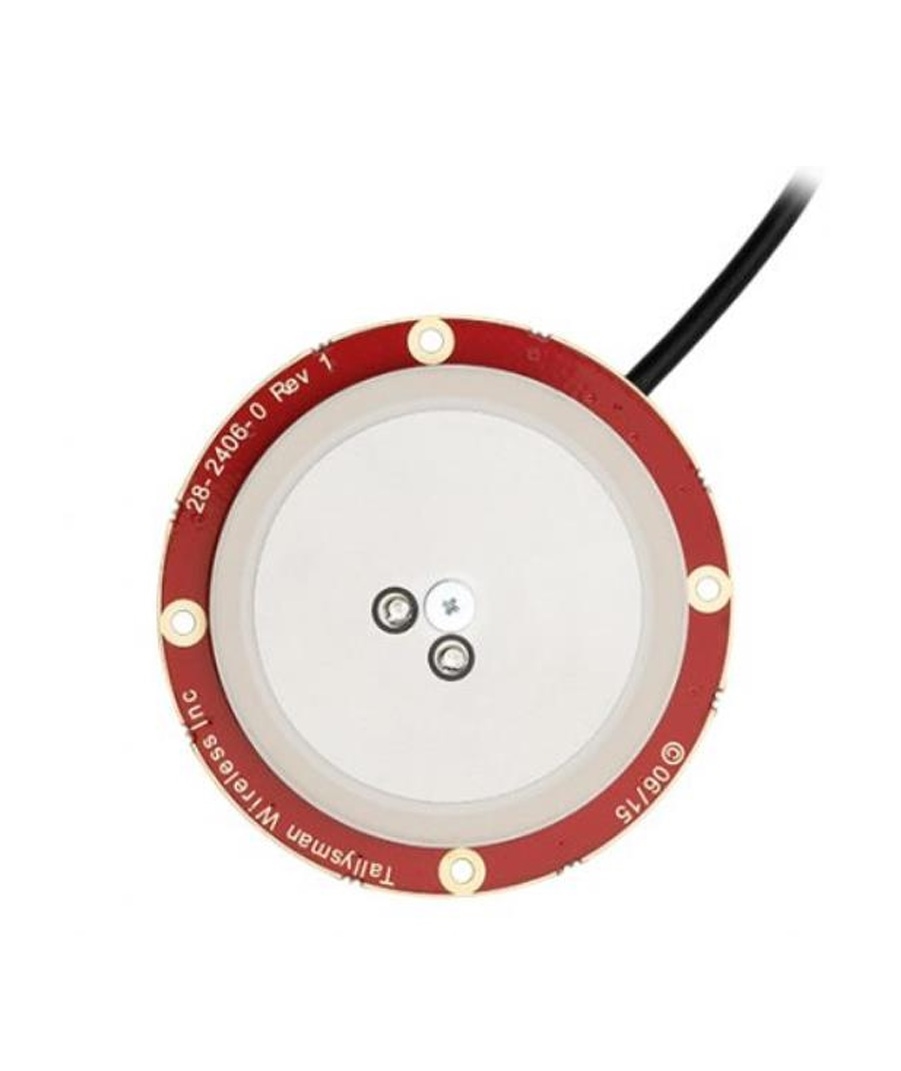

      TW2706 Embedded Single Band GNSS Antenna

      The TW2706 employs Tallysman’s unique Accutenna® technology, covering GPS/QZSS L1, GLONASS G1, Galileo E1, BeiDou B1, as well as SBAS (WAAS, QZSS, EGNOS & MSAS). It is especially designed for precision industrial, agricultural, safety and security OEM applications. It provides truly circular response over its entire bandwidth thereby producing superior multipath signal rejection.

      The TW2706 features a dual-feed wideband patch element, with one LNA per feed, a mid section Combiner and SAW filter, and a final output gain stage.

      The TW2706 is available with a variety of connectors and custom cable lengths. It is highly recommended to take advantage of Calian's custom tuning service to ensure optimal performance of this antenna in your housing and with your ground plane.

      Coverage:

      CoverageMountAmplifier GainConnector Options
      GPS/QZSS-L1,
      GLONASS-G1,
      Galileo-E1,
      BeiDou-B1      		OEM / Embedded28 dBMany Options, Please Inquire

      Applications:

      • High-accuracy & mission-critical global positioning
      • Precision agriculture, mining, and construction
      • Law enforcement and public safety • Avionics
      • Law enforcement and public safety
      • Fleet management and asset tracking


      Antenna - Measured with a 100 mm ground plane

      TechnologyDual-feed RHCP ceramic patch
       Gain
      dBic typ. at Zenith      		Axial Ratio
      dB at Zenith
      GNSS
        GPS / QZSSL14.75≤ 2
      L2--
      L5--
        GLONASSG14.75≤ 2
      G2--
      G3--
        GalileoE14.75≤ 2
      E5A--
      E5B--
      E6--
        BeiDouB14.75≤ 2
      B2b--
      B2a--
      B3--
        IRNSS / NavICL5--
        QZSSL6--
        L-Band Services (1525 MHz - 1559 MHZ)--
      Satellite Communications
        Iridium--
        Globalstar--
      Other
        Axial Ratio at 10°-Efficiency-
        PC Variation---
      Low Noise Apmlifier(LNA) - Measured at 3V and 25°C
      Upper BandLower Band
      Frequency Bandwith
      1559 - 1606 MHz-
      Out-of-band Rejection
      > 40 dB @ < 1500 MHz
      > 20 dB @ < 1540 MHz
      > 45 dB @ > 1640 MHz
      -
