產品明細

HC771E

單頻段螺旋天線

    產品簡述
    ♦ 超低雜訊前置放大器：2.0 dB
    ♦ 軸比：≤ 0.5 dB（天頂）
    ♦ 低雜訊放大器增益：典型值 28 dB。
    ♦ 低電流：典型值 15 mA。
    ♦ 靜電放電電路保護：15 kV
    ♦ 在 2.5 至 16 VDC 電壓範圍內性能保持不變
    ♦ 符合 REACH 和 RoHS 標準

    <<產品型錄>>
      詢價

      產品詳細介紹Product Introduction

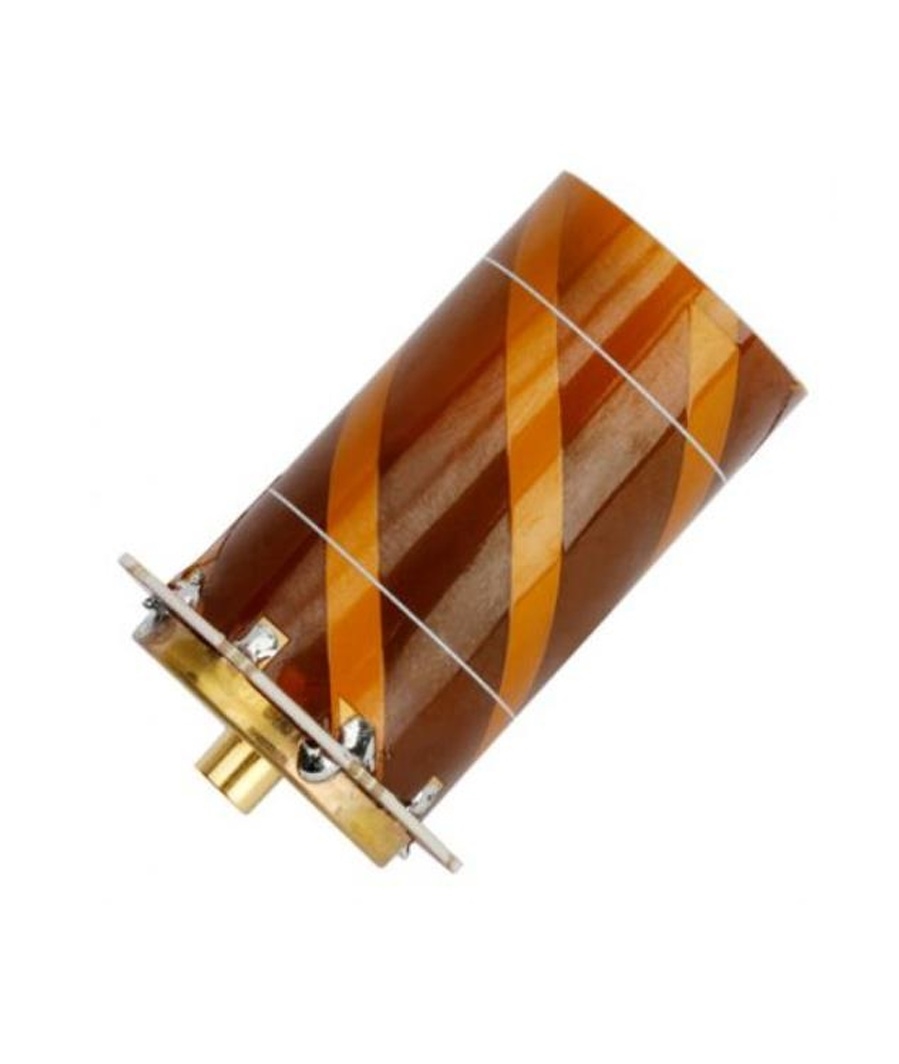

      HC771E Single-Band Helical Antenna

      The lightweight patented HC771E embedded helical antenna is designed and crafted for precision positioning and covers the GPS/QZSS-L1, GLONASS-G1, Galileo-E1, and BeiDou-B1 frequency bands, as well as SBAS (WAAS, EGNOS & MSAS).

      Weighing only 4 g, The light and compact HC771E features a precisiontuned helix element that provides excellent axial ratios and operates without the requirement of a ground plane, making it ideal for a wide variety of applications, including unmanned aerial vehicles (UAVs).

      The HC771E features an industry-leading low current, low-noise amplifier (LNA) that includes an integrated low-loss pre-filter to prevent harmonic interference from high-amplitude signals, such as 700 MHz band LTE and other nearby in-Band cellular signals.

      Tallysman provides an optional embedded helical mounting ring, which traps the outer edge of the antenna circuit board to the host circuit board or to any flat surface. Tallysman also provides support for installation and integration of embedded helical antennas to enable the integrator to achieve a successful installation and obtain optimum antenna performance.

      Coverage:

      CoverageMountAmplifier GainConnector Options
      GPS/QZSS-L1,
      GLONASS-G1,
      Galileo-E1,
      BeiDou-B1      		OEM / Embedded28 dBMCX (female)

      Applications:

      • Autonomous unmanned aerial vehicles (UAVs)
      • Precision GNSS positioning
      • Precision land survey positioning
      • Mission-critical GNSS timing
      • Network timing and synchronization
      • Sea and land container tracking
      • Fleet management and asset tracking
      • Marine and avionics systems
      • Law enforcement and public safety


      Antenna:

      TechnologySingle-frequency, RHCP quadrifilar helix
       Gain
      dBic typ. at Zenith      		Axial Ratio
      dB at Zenith
      GNSS
        GPS / QZSSL13.5≤ 0.5
      L2--
      L5--
        GLONASSG12.0≤ 0.5
      G2--
      G3--
        GalileoE13.5≤ 0.5
      E5A--
      E5B--
      E6--
        BeiDouB13.0≤ 0.5
      B2--
      B2a--
      B3--
        IRNSS / NavICL5--
        QZSSL6--
        L-Band Services (1525 MHz - 1559 MHZ)--
      Satellite Communications
        Iridium--
        Globalstar--
      Other
        Axial Ratio at 10°-Efficiency-
        PC Variation---
      Low Noise Amplifier (LNA): - Measured at 3V and 25°C
      Frequency BandwithOut of Band Rejection
      1559 - 1606 MHz> 65 dB @ < 1500 MHz
      > 65 dB @ > 1700 MHz
